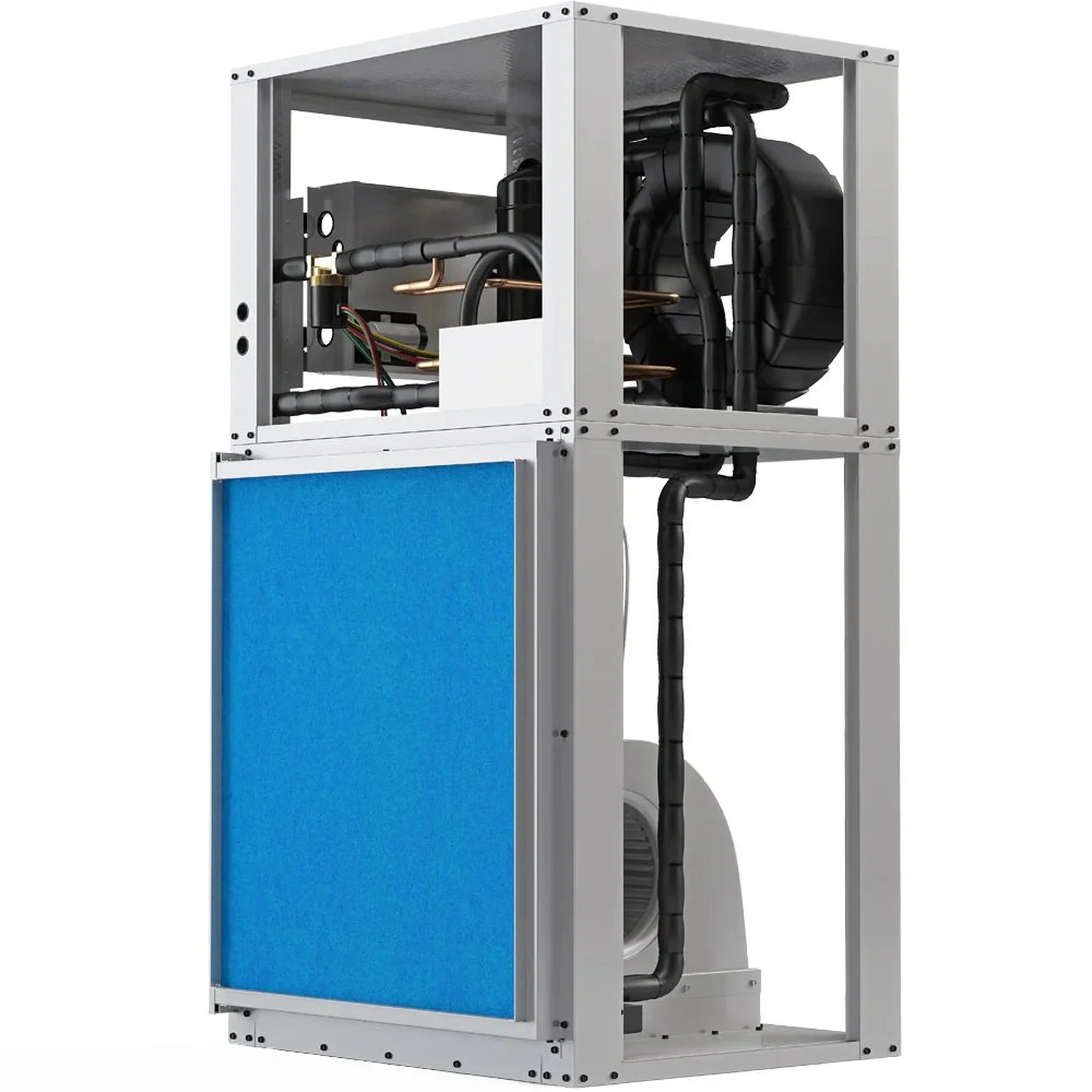

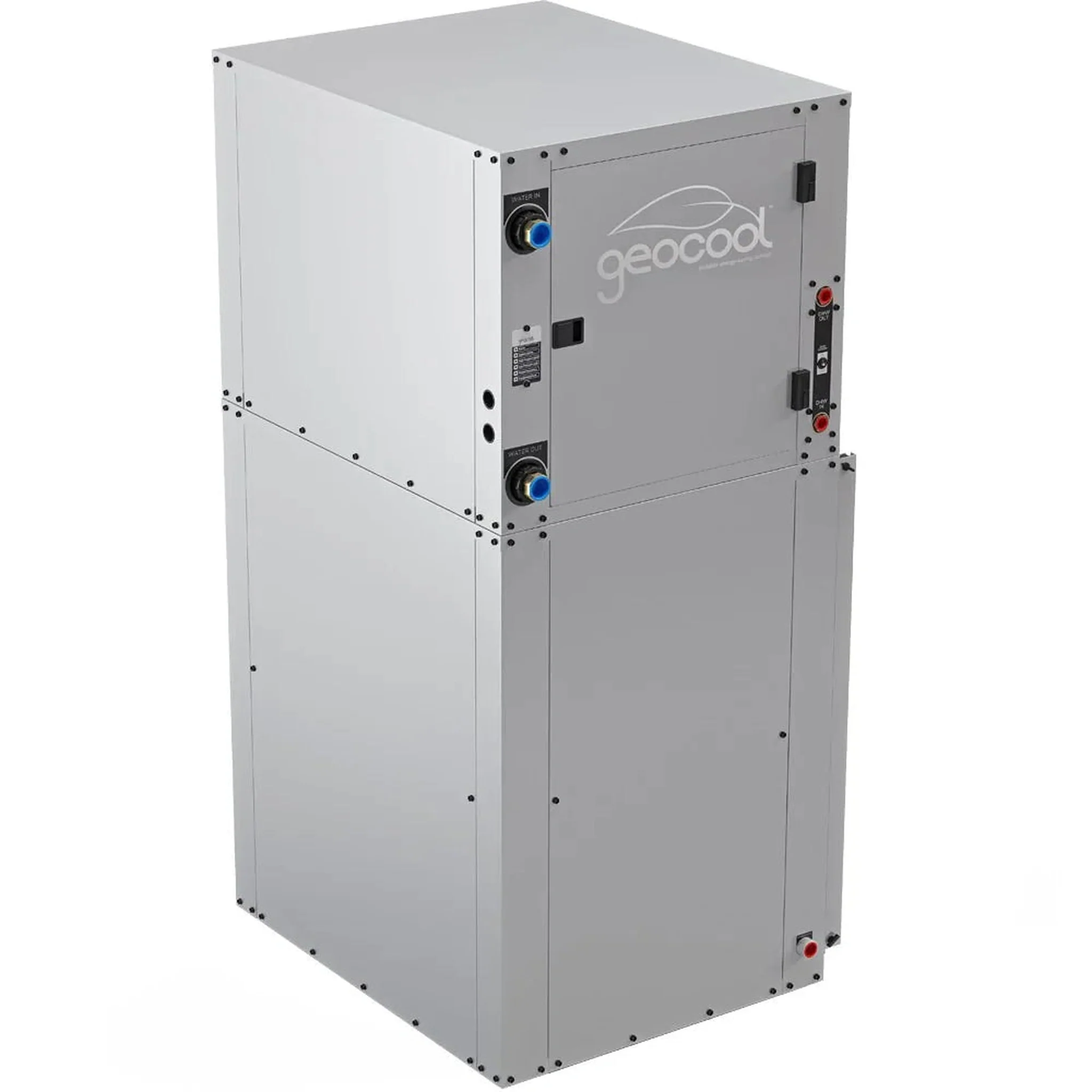

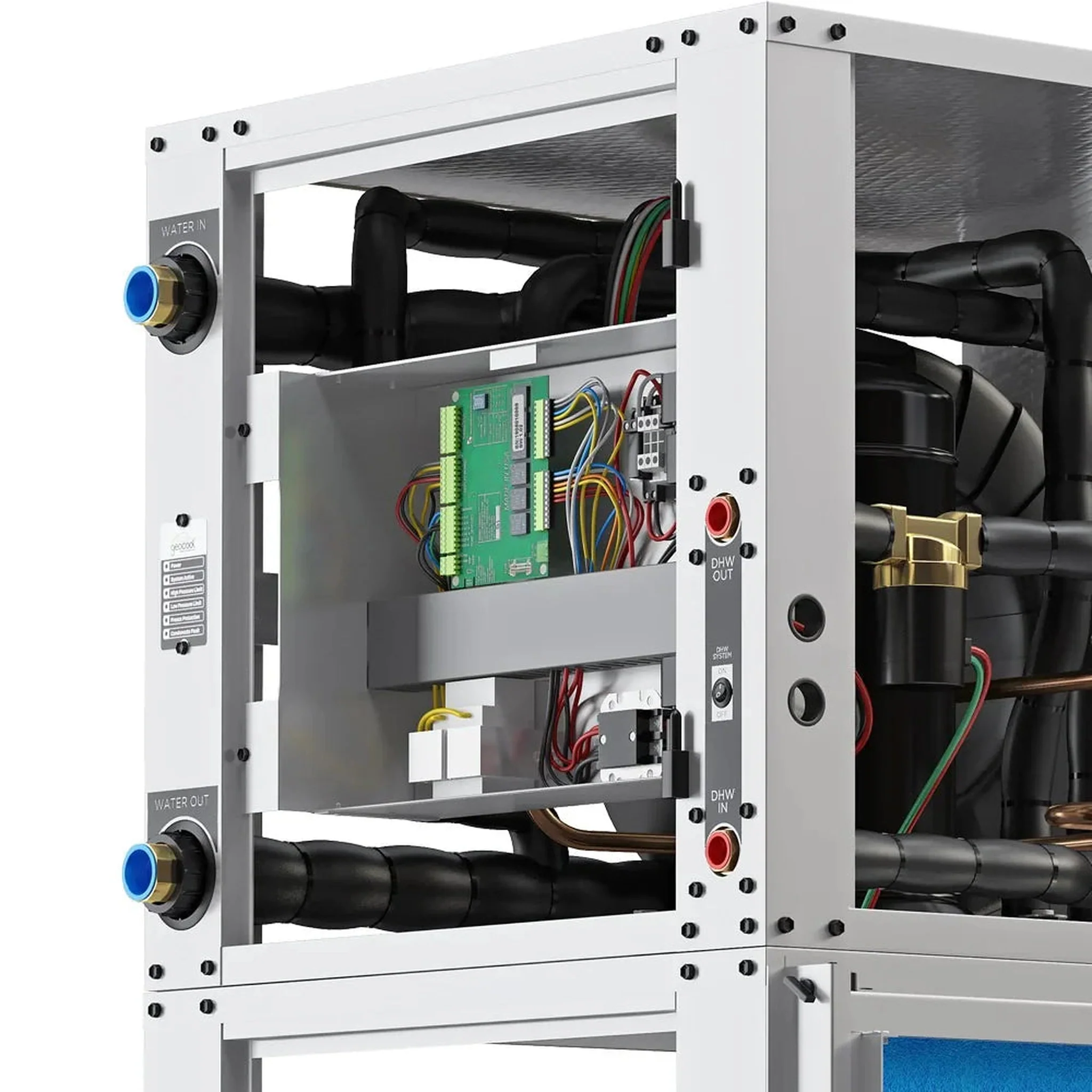

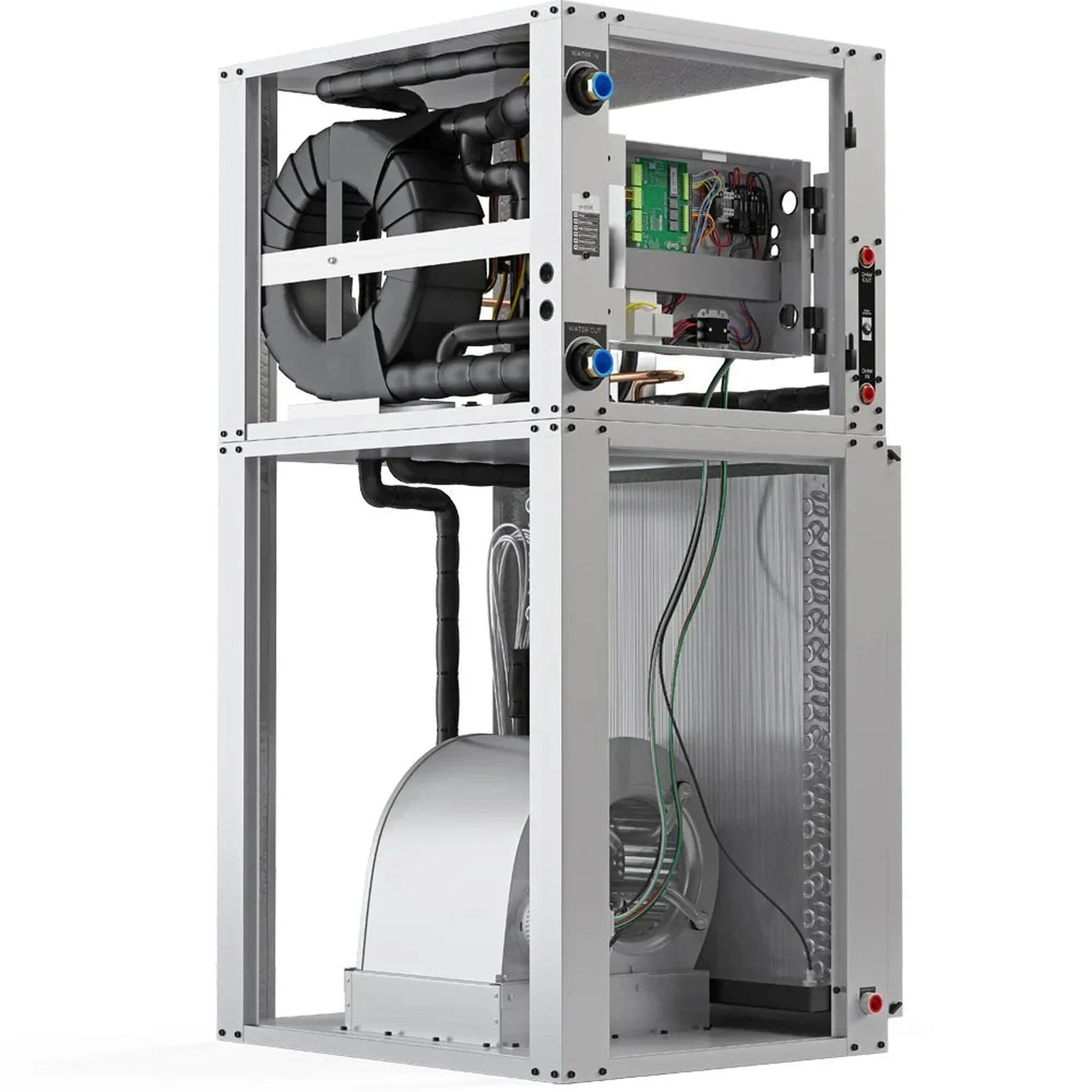

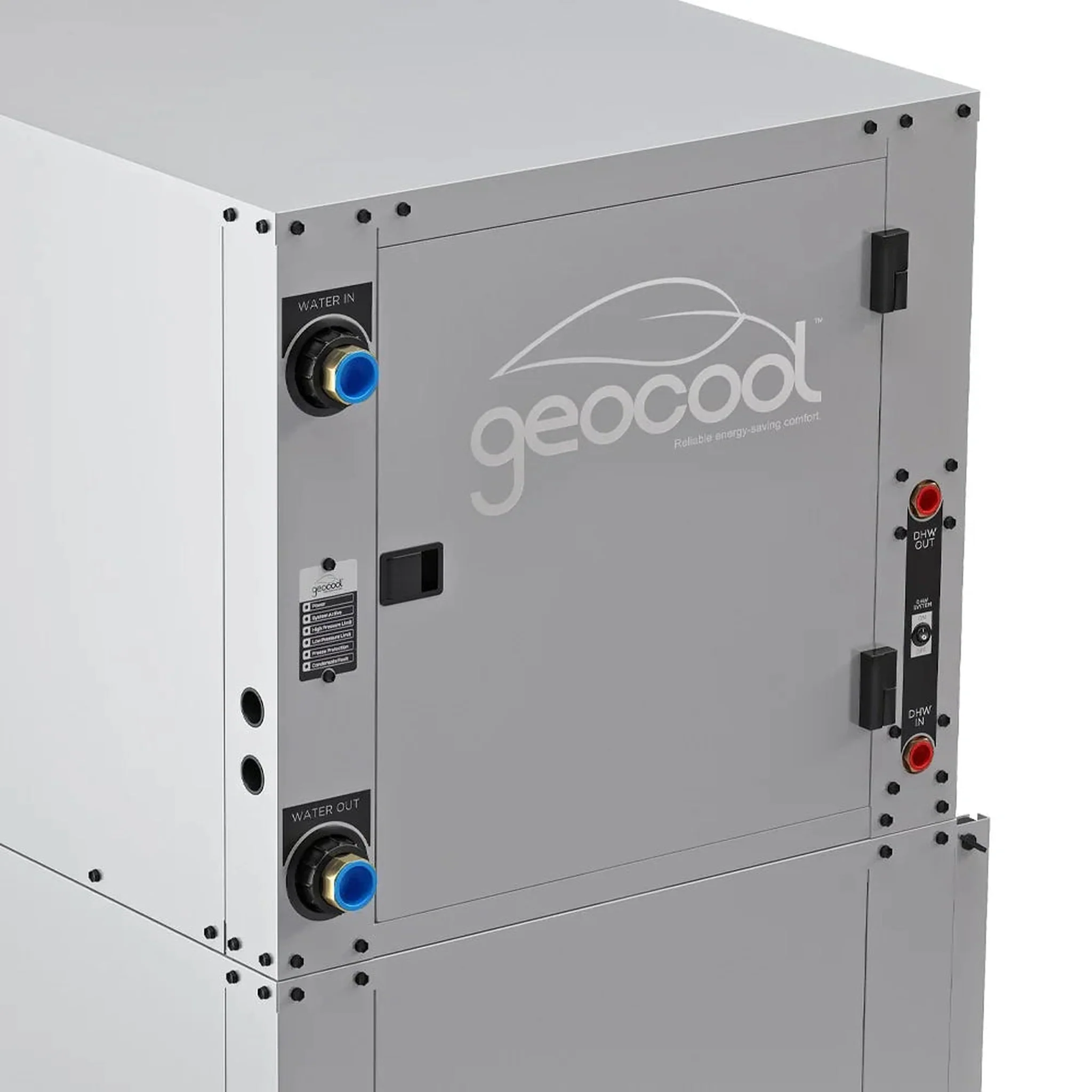

MRCOOL 48K Downflow Two-Stage 230V 1-Phase 60Hz CuNi Coil Right w/Heater, GCHPD048TGTANDR



Dimensions:

• Height: 58.5"
• Length: 32"
• Width: 25.75"

Model:

• Model Number: GCHPD048TGTANDL

Certifications:

• AHRI Number: 204346874

Airflow:

• Air Flow Direction: Downflow

Coverage Area:

• Average Coverage Area: 2,000 - 2,400 Sq Ft

Components:

• Blower Motor: Variable Speed
• Compressor: Two Stage

Capacities:

• Cooling Capacity: 4 Ton
• Primary Heating Capacity: 45,001 - 50,000 BTU

Efficiency:

• EER (Energy Efficiency Ratio): 33
• Heat Pump Efficiency (COP): 5.0

Connections:

• HWG (Hot Water Generator) Connection: 1/2 inch
• Loop Connection: 1 inch

Electrical:

• Electrical Phase: 1-Phase
• Voltage: 240
• Max Overcurrent Protection: 60 amps

Warranty:

• Warranty Period: 5 Years

Additional Information:

• Weight: 345.0000 lbs
• California Residents: See Prop 65 WARNING

Installation Note:

• Installation must adhere to all applicable codes and regulations. A certified and trained electrical technician is required for the installation process.
